Vertex Magneto Wiring Diagram. Fits OAC cap only. Connect the ignition wires in accordance to magneto rotation and engine firing order.
Diagram Sea Hunt Wiring Diagram Full Version Hd Quality Wiring Diagram Stupiddiagrams Netfuturismo It from stupiddiagrams.netfuturismo.it

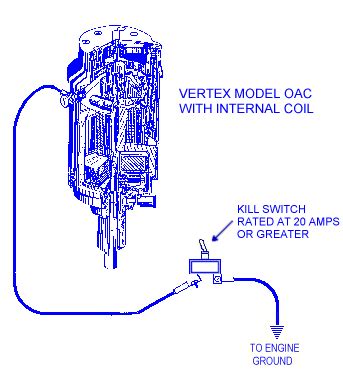

A durable cover that is designed to fit snugly over the Vertex OAC magneto cap and wiring. Install Vertex magneto distributor head. If a grounding.
Prevents the entrance of dirt dust and moisture.

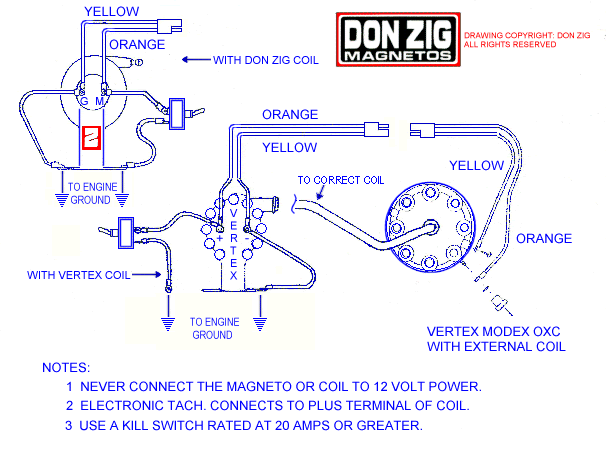

Vertex magneto wiring diagram why would a vertex magneto that was designed over 50 years ago still be so popular a dependable series of magnetos that will more than satisfy your ignition. If the engine is equipped with carbon-center Where Performance Comes Down to the Wire 3. Fits OAC cap only. Wire the magneto external coil and kill switch as shown in the wiring diagram.
